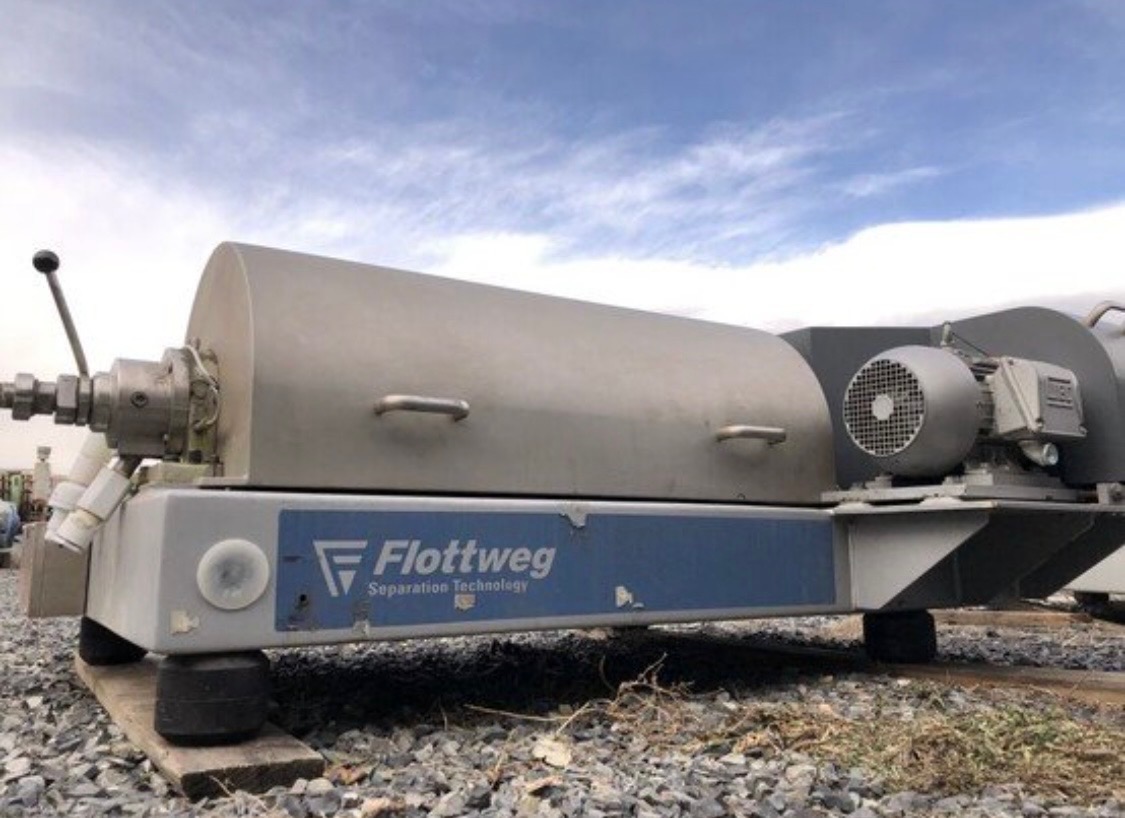

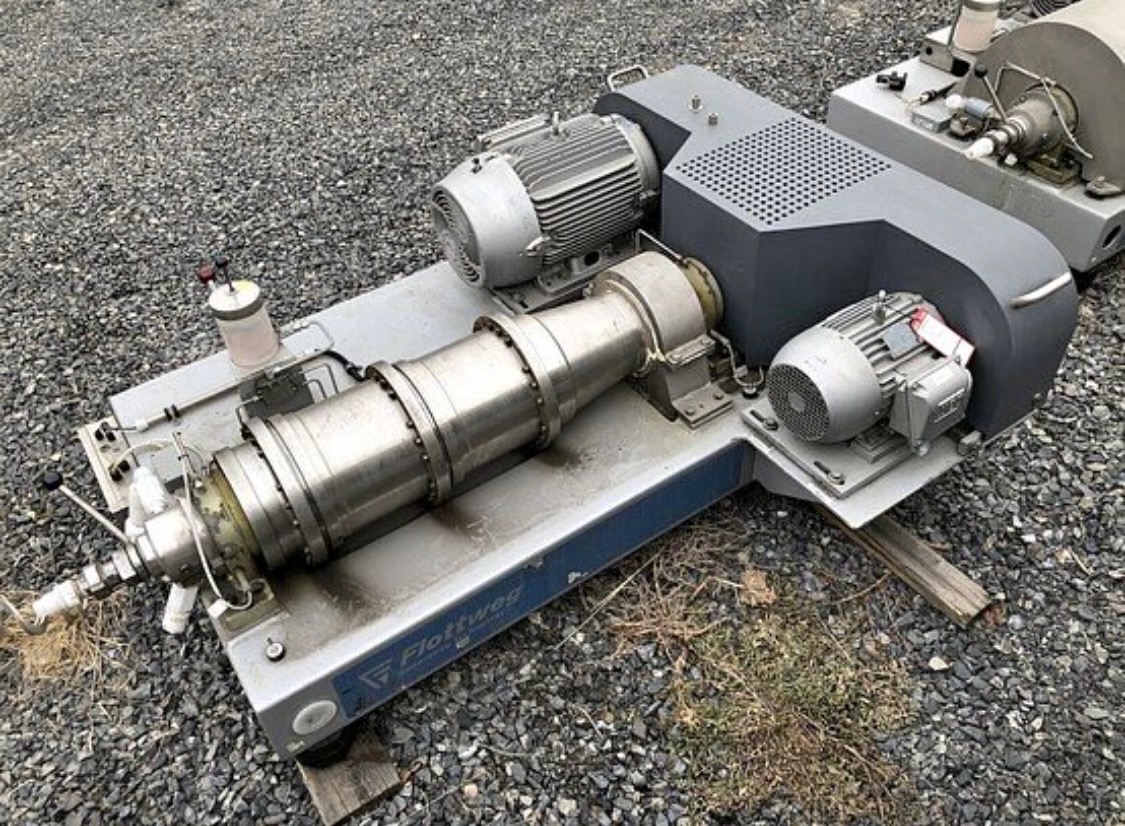

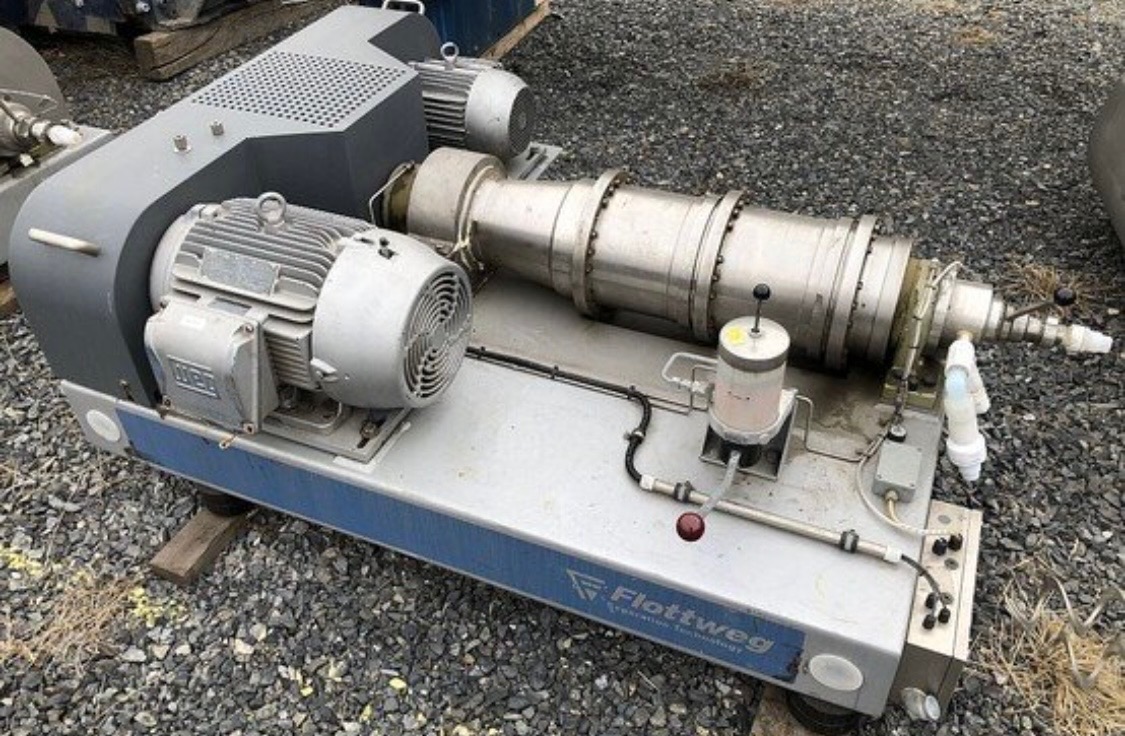

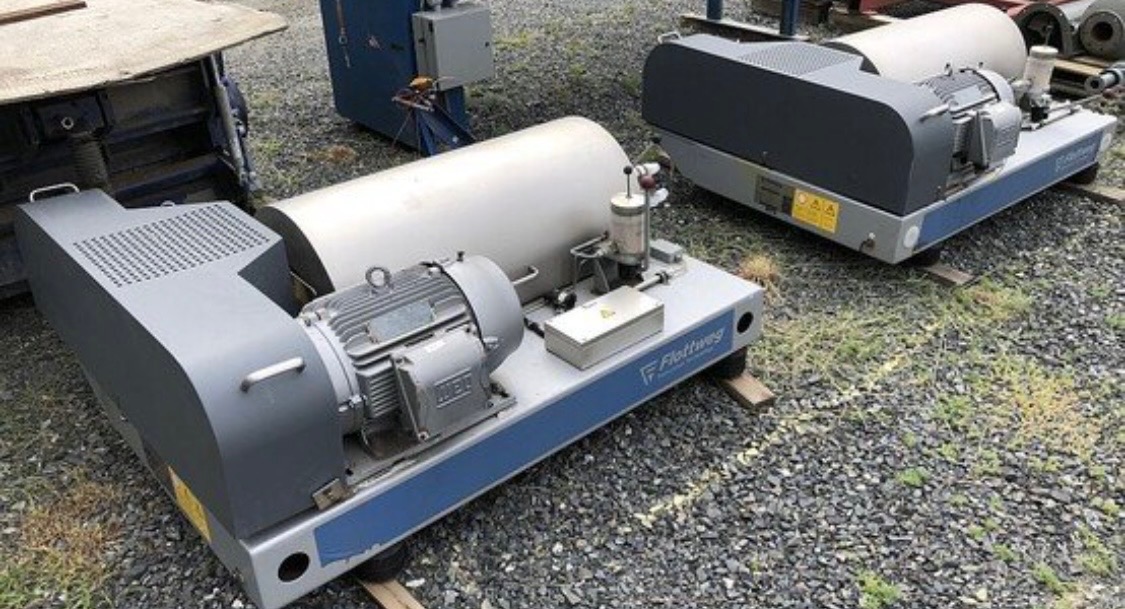

Two (2) Flottweg Z series Two-Phase-Decanters to include:
Model: Z23-4/401
Model: Z23-4/301
Mfg. 2015
Max Bowl Speed: Min-1 5500
Max Sediment Density: 2.9 kg/DM³
Min/Max Product Temp: 0/100

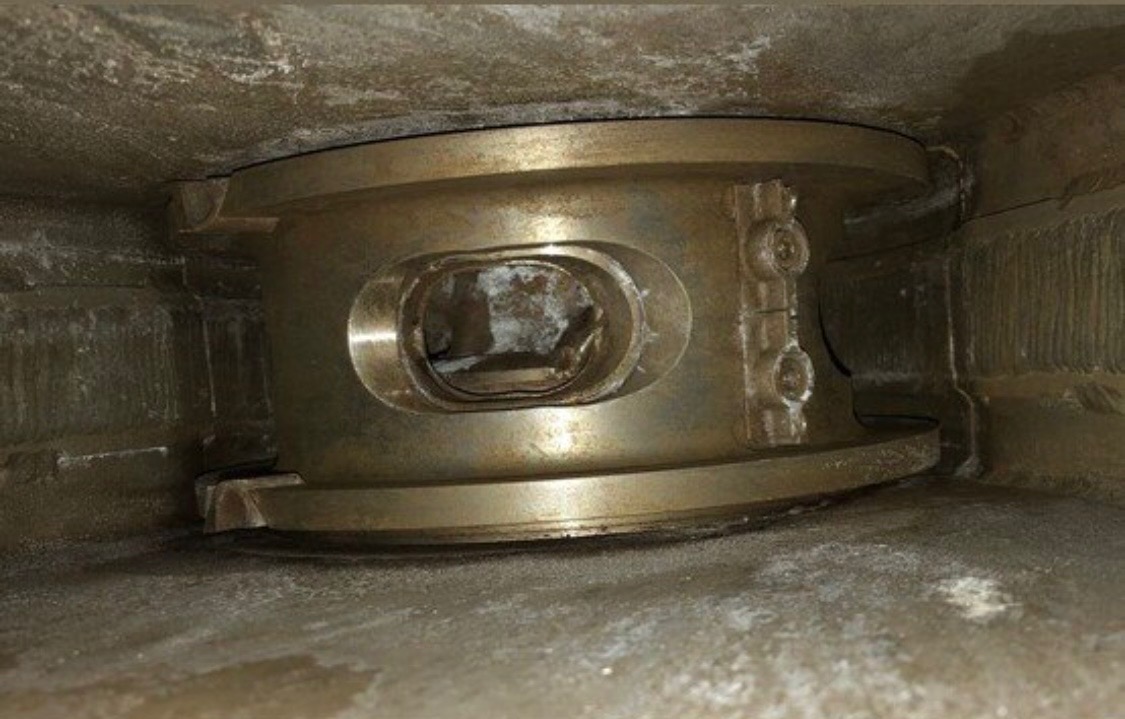

Bowl Dimensions: 9 in. Dia. x 33 in. Long Stainless Steel
Feed Inlet 1 in. Dia.
Liquid Discharge: 1 in. Dia.

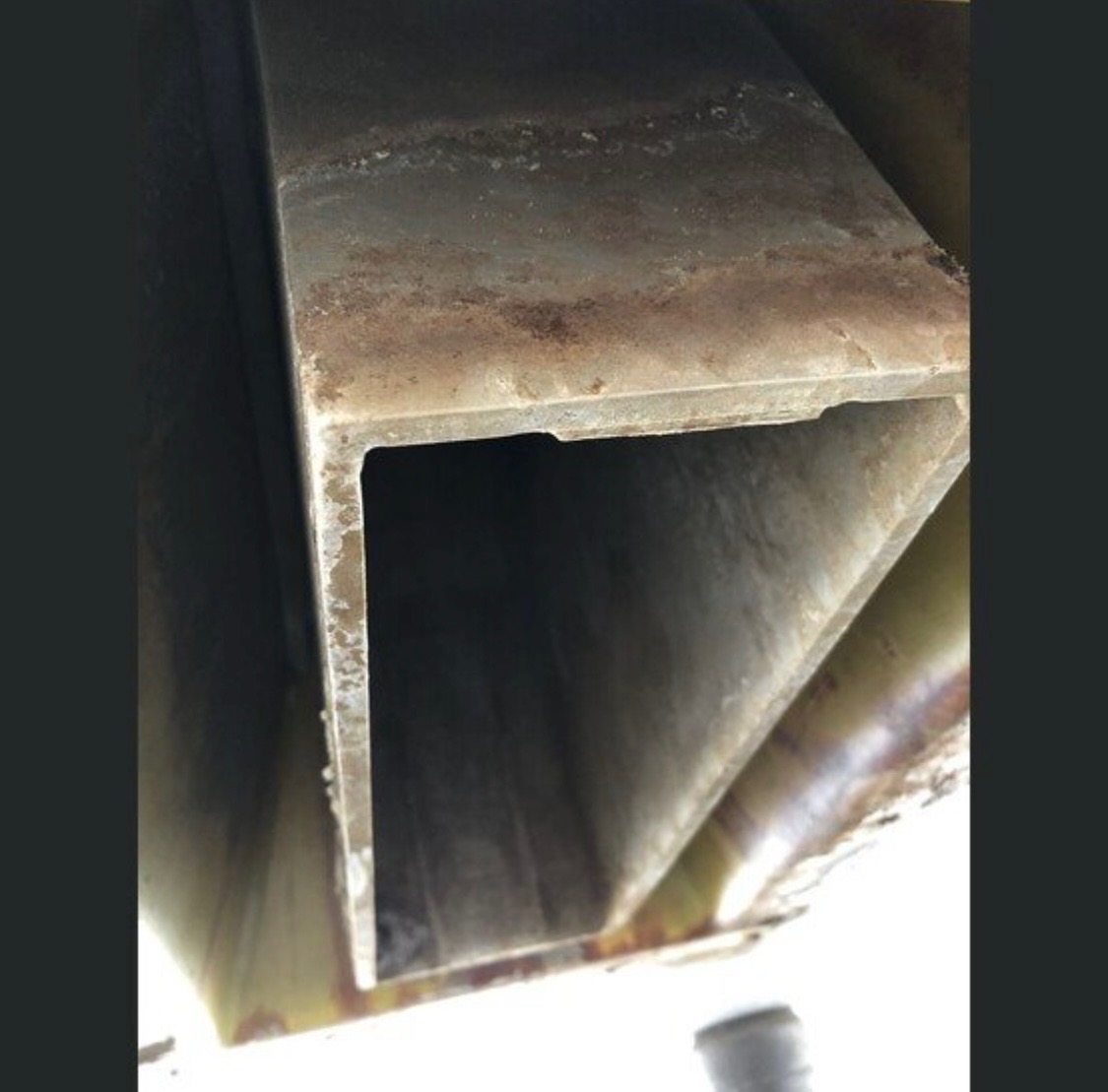

Solids Discharge: 4″ X 12″
Dual Drive Motors:
WEG 15 HP Motor
Voltage: 208-230/460 Volt
3530 RPM
Frame: 254/6T
WEG 5 HP Motor
Voltage: 230/460 Volt
3500 RPM
Frame: 182/4T
Manual Lubrication System
Stainless Steel Hood

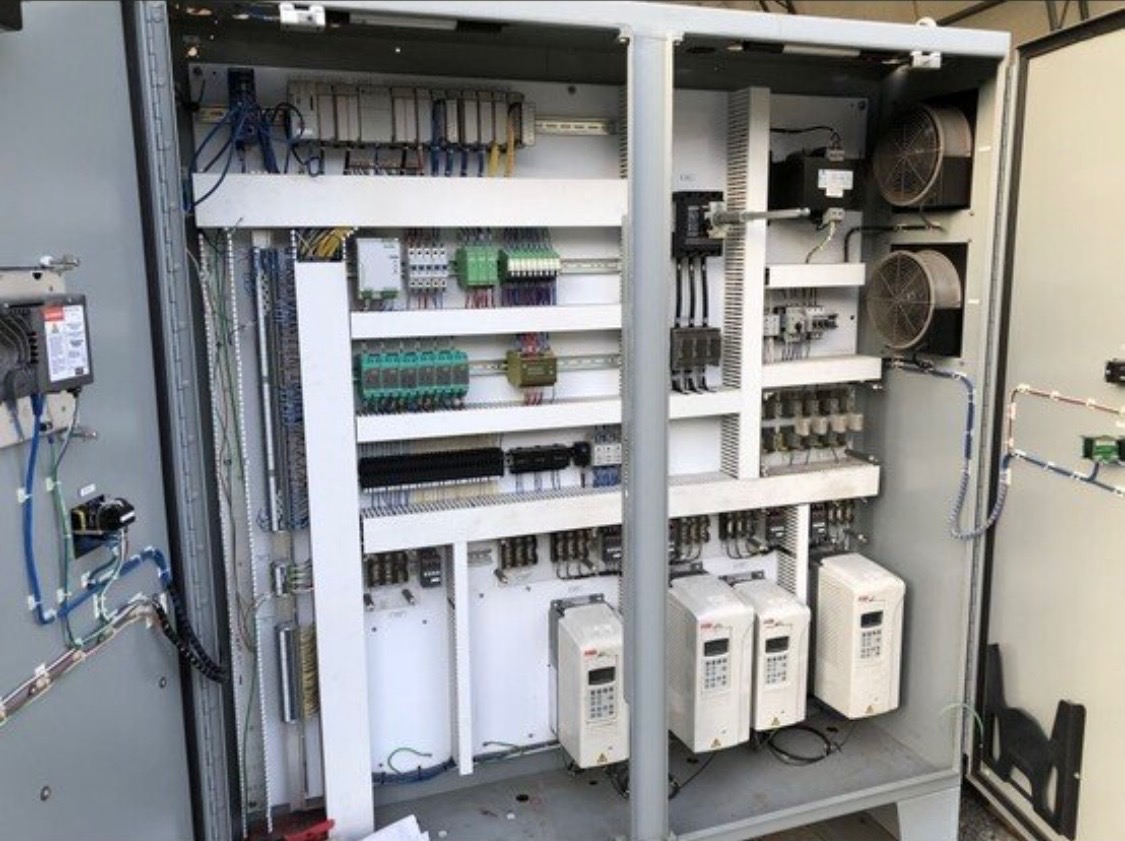

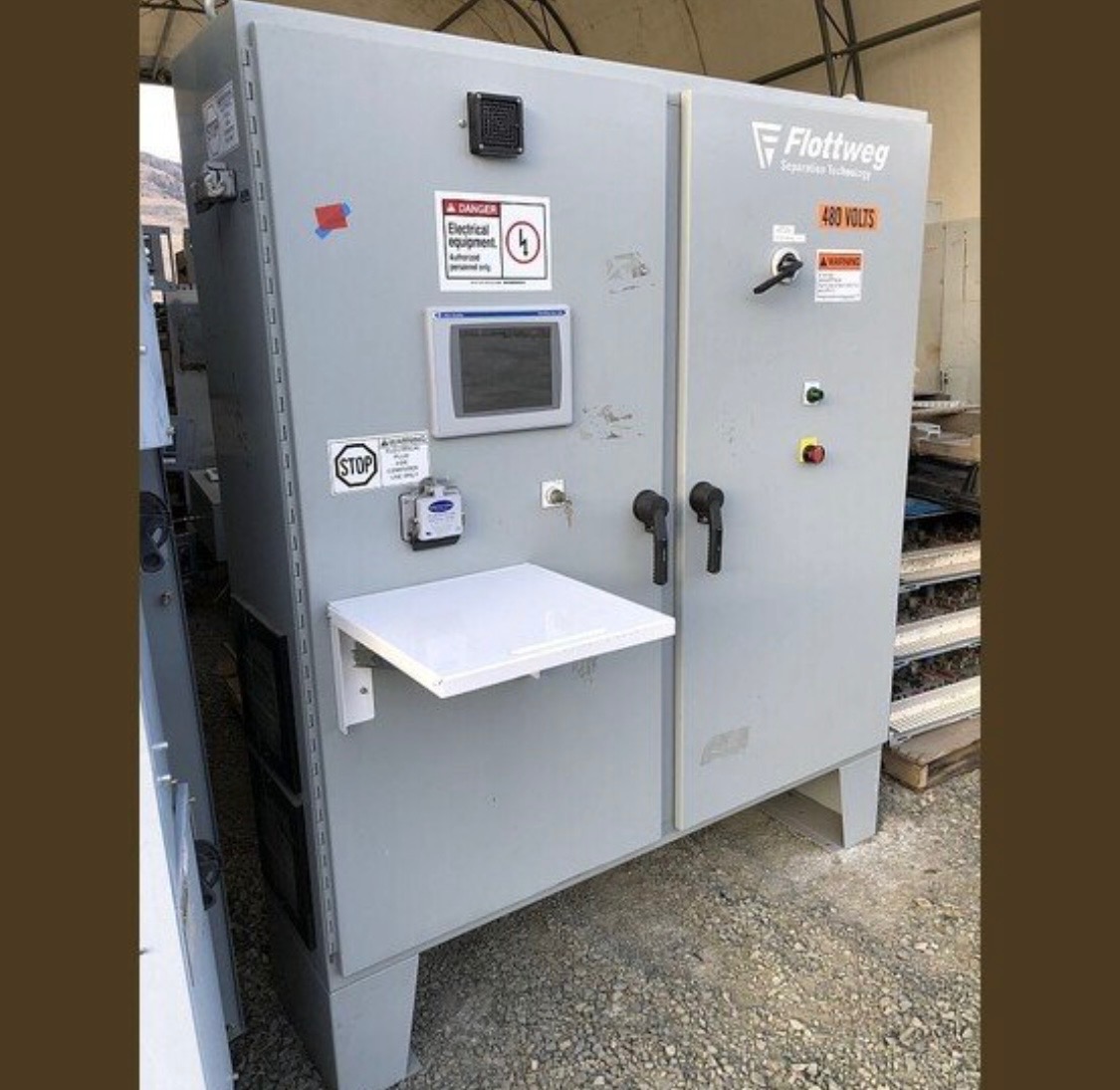

Flottweg Control Cabinet:

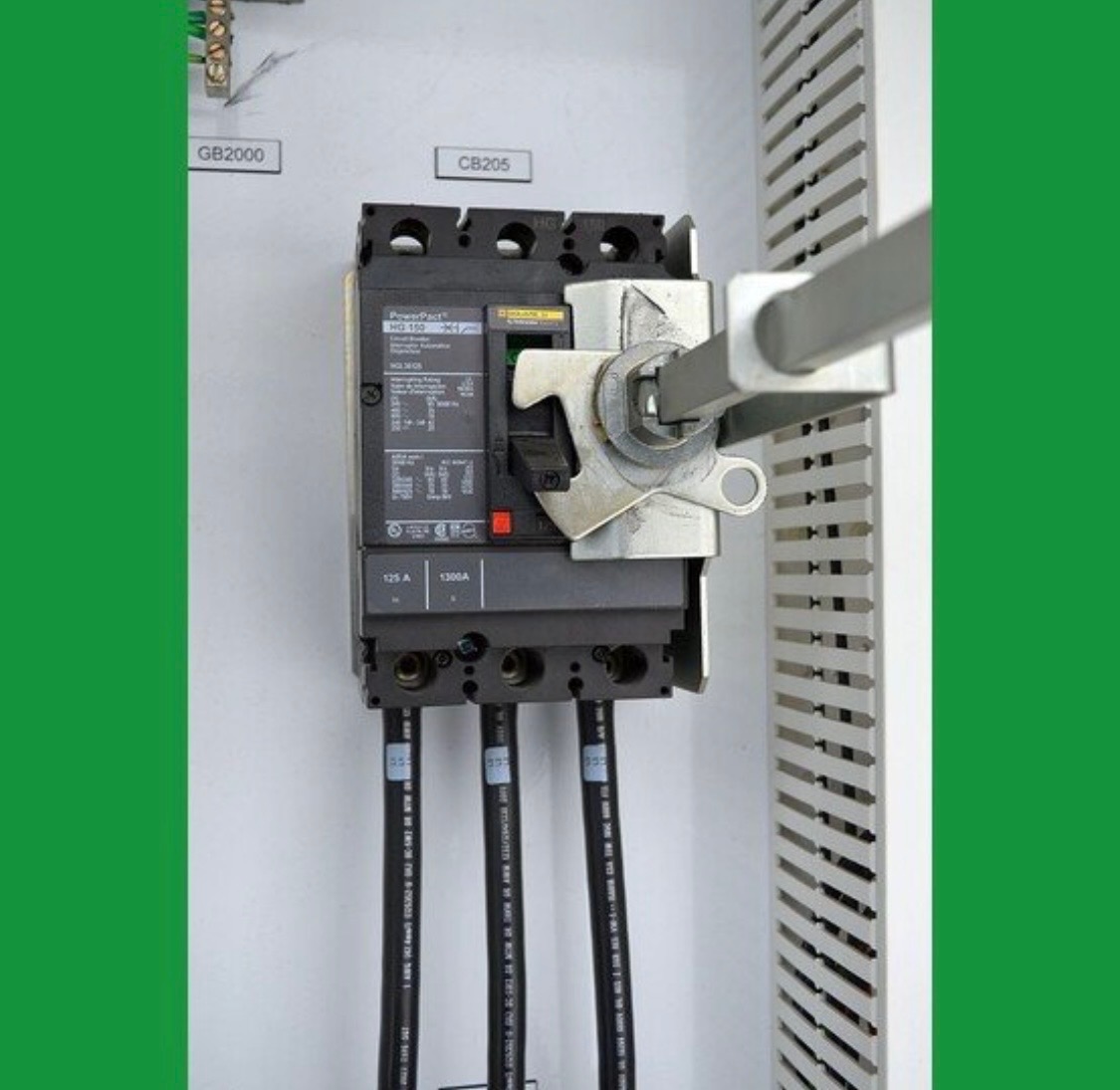

Square D Main Disconnect Breaker
125 Amps
2 – ABB 5 HP VFD’s
2 – ABB 15 HP VFD’s
Acme Electric Control Transformer
VA: 3000
Dual Internal Cooling Fans
External Computer Programing Junction Port
Fold Down Computer Work Station on Cabinet Door

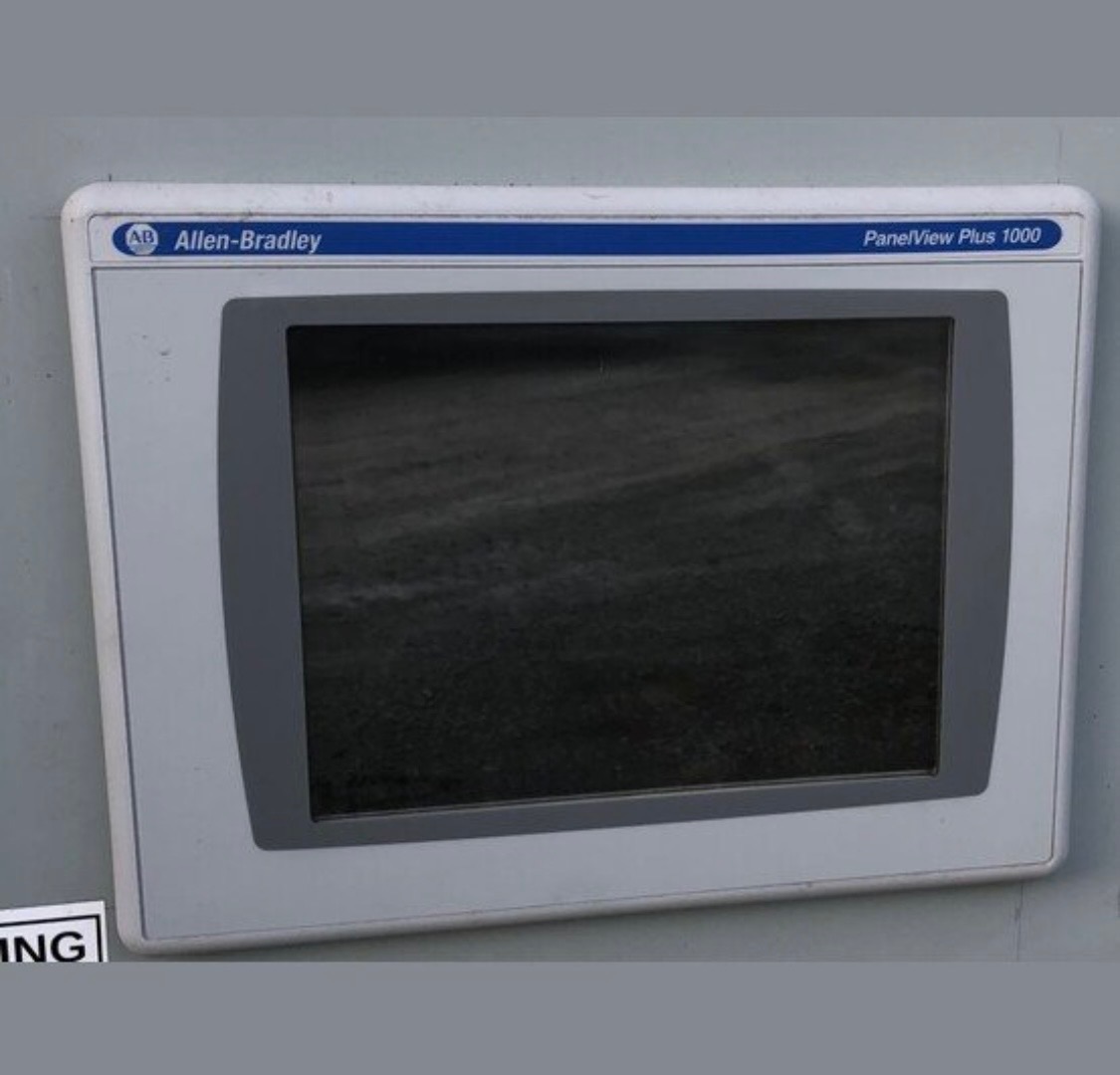

Allen Bradley “Panel View plus 1000” Display Screen
