Alfa Laval Aldec 10 (NX-904) Decanter Centrifuge

Alfa Laval Aldec 10 (NX-904) Decanter Centrifuge

Gently used Alfa Laval Aldec 10 (NX-904) decanter centrifuge.  Manufactured in 2010.  Max bowl speed:  5,300 RPM.  200 mm x 709 mm bowl dimensions.  10 degree beach angle.  45.6/1 ratio planetary gearbox.  316 stainless steel contact parts.  TM40 flame sprayed tungsten carbide wear protection on conveyor and feed zone.

Alfa Laval Lynx 40 Decanter Centrifuge

Alfa Laval Lynx 40 Decanter Centrifuge

Alfa Laval Lynx 40 Decanter Centrifuges.  Two (2) machines available.  Last used in an oilfield drilling mud. Complete machines with explosion proof motors and full-variable control system.

Alfa Laval MAPX-309 Disk Stack Centrifuge

Alfa Laval MAPX-309 Disk Stack Centrifuge

Alfa Laval MAPX-309 disk stack centrifuge.  15 HP motor.  Features open cover, gravity discharge of both light and heavy liquid phases.  Used for fuel oil, diesel, lube oil, yellow grease, brown grease, biodiesel and waste vegetable oil separations.

Alfa Laval NX 934B-11G three-phase (liquid/liquid/solid) decanter centrifuge

Alfa Laval NX 934B-11G three-phase (liquid/liquid/solid) decanter centrifuge

Alfa Laval NX 934B-11G three-phase (liquid/liquid/solid) decanter centrifuge. Conveyor features STC tiled wear protection. Hydraulic back drive system, electrical cabinet, tools, and manual. The machine was built in 1996 and has approximately 8,000 – 10,000 running hours since last reconditioning including new tiles. Please contact us for additional pictures and details.

Alfa Laval NX-314 Decanter Centrifuge

Alfa Laval NX-314 Decanter Centrifuge

Alfa Laval NX-314 decanters available. 14″ x 34″ bowl dimensions, 8.5 degree beach. 70 mm or 110 mm conveyor pitch. Hard-facing or tiled wear protection on conveyor. 2.5 kN-M gearbox. All stainless steel production contact areas. Can be rebuilt to your specifications. Note attached pictures of typical reconditioned machines offered by Kyte.

Alfa Laval NX-414 Decanter Centrifuge

Alfa Laval NX-414 Decanter Centrifuge

Alfa Laval NX-414 decanter available. 3.5 kN-M gearbox. 110 mm conveyor pitch. Epicentric plate dams. Double row cake discharge. Sanitary-style bowl and conveyor. GS-coupling. With motors. These machines were in operation prior to consignment. Excellent condition. Suitable for food-grade sanitary applications or oilfield drilling mud with wear protection added.

Alfa Laval NX-418 Decanter Centrifuge

Alfa Laval NX-418 Decanter Centrifuge

Reconditioned Alfa Laval NX-418 (14″ x 57″) decanter centrifuge. 3.5 kN-M gearbox. Esjberg-style feed zone. 110 mm (4.25″) pitch. Double-row cake discharge. Tungsten carbide tiled wear protection on solids-half of the conveyor. Stainless Steel construction. Motors, controls and oilfield skid can be supplied on request.

Alfa Laval NX-418 Decanter Centrifuges for drilling mud solids control

Alfa Laval NX-418 Decanter Centrifuges for drilling mud solids control

Nine (9) used Alfa Laval DMNX 418 decanter centrifuges set-up for oilfield drilling mud applications. Complete with explosion proof controls, 40 HP main drive motor, 15 HP back drive motor, 5 speed adjustable back drive, high-torque 3.5 kN-M gearboxes, tiled conveyors all mounted to and oilfield skid.  460-480V, 3 ph, 60 Hz.  Optional progressive cavity feed pump available.  Optional stand available. PRICED TO MOVE!  Contact us for details.

Alfa Laval UVNX 934 Decanter Centrifuges

Alfa Laval UVNX 934 Decanter Centrifuges

Two (2) used Alfa Laval UVNX934b-31G decanter centrifuges last used in food processing.  Built in 1994 and 1996. The “UV” designation in Alfa Laval nomenclature references olive oil applications, however, the base machine is the same for variety of other applications including rendering, wastewater, and chemical applications. Reported to be in very good condition.

Allied G7 “big bowl” oilfield decanter centrifuge for drilling mud

Allied G7 “big bowl” oilfield decanter centrifuge for drilling mud

Used Allied Machining and Centrifuge Ltd. model G7 “big bowl” decanter centrifuge used for oilfield drilling mud.  Bowl Dimensions:  22″ x 78″.  3000 RPM max. bowl speed.  Max. G-force:  2,800 x G @ 3,000 RPM.  Stainless steel product contact areas.  Complete with 210 HP main-drive motor, back-drive, feed pump and VFD control system.  Rated for Class1 Div. 1 areas.  Built in 2014.  Country of Origin:  Canada. Details and photos to follow soon!  Machine will be made available for lease or…

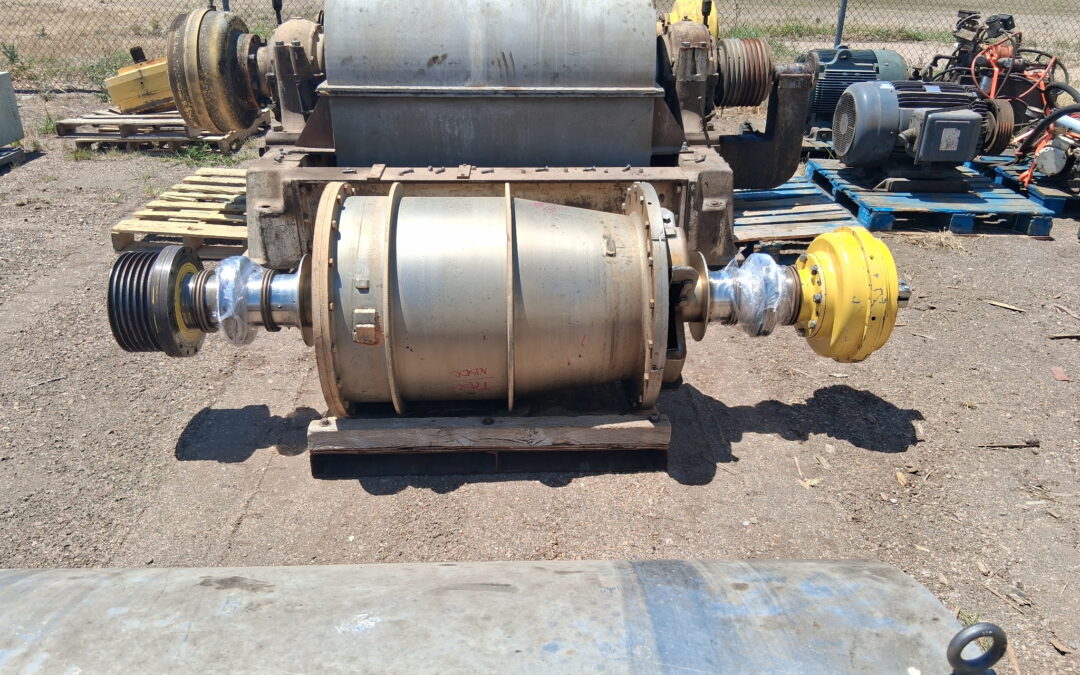

Bird 24 x 38 Decanter Centrifuge

Bird 24 x 38 Decanter Centrifuge

Bird 24 x 38 centrifuge.  Stainless steel construction.  10 degree beach.  Gearbox located on solids-discharge end, feed tube on liquid discharge end.

Bird 24 x 60 Decanter Centrifuge

Bird 24 x 60 Decanter Centrifuge

Bird 24″ x 60″ decanter centrifuge rotating assembly. Carbon steel construction. SA-69 gearbox, 140:1 ratio. Hard-surfaced, 9″ double lead conveyor.  10 degree beach angle. Oil lube bearings. Epicentric Liquid Weirs / plate dams.

Bird 40″ x 60″ Decanter Centrifuge

Bird 40″ x 60″ Decanter Centrifuge

Three (3) machines available. Bird 40″ x 60″ decanter centrifuge. 15/3 degree beach. Stainless steel construction. 116/1 gearbox ratio. 12″ double lead conveyor with hard-surfacing.

Bird model 4900 (30″ x 96″) Decanter Centrifuge

Bird model 4900 (30″ x 96″) Decanter Centrifuge

Bird 30″ X 96″ high “G” decanters in stainless construction with 10 degree contour bowls, suitable for operation at 2550 X “G”. Gearbox 75/1 ratio, very attractive pricing. Model 4900. Built in 1986 for ethanol plant and regularly maintained by Bird, 200 HP main drive, 460/3/60, with 40 HP Eddy Current Brake Backdrive, lube system. F.O.B. Amarillo, TX.

Flottweg Tricanter

Flottweg Tricanter

Flottweg Z4 (2550) tricanter.  16″ x 50″ bowl dimensions.  Last used in 3-phase separation of slop oil / waste oil separation (separation of oil, water and solids).  Complete machine with VFD control panel.  All electric main and back drive.  40 HP, 460 – 480V, 3-phase, 60 Hz.  Water phase discharged via tubes.  Oil phase discharged via centripetal pump.

Flottweg Z42-3/441 Tricanter

Flottweg Z42-3/441 Tricanter

Flottweg Z42-3/441 Tricanter. 16″ x 50″ bowl dimensions. 4000 RPM max. bowl speed. With main-drive and back-drive motors. No controls. *Reconditioning services and supply of new control system available on request.

Hutchison Hayes 1448 Oilfield Decanter Centrifuge

Hutchison Hayes 1448 Oilfield Decanter Centrifuge

Hutchison-Hayes 1448 decanter centrifuge (Sharples P-3400 clone). 52/1 ratio gearbox with trip-arm. 4.25″ conveyor pitch with tiles. Open-hole, fully adjustable epicentric plate dams. Hogged-out solids discharge.

Sanitary/Food Grade Sharples P3400 Decanter Centrifuge

Sanitary/Food Grade Sharples P3400 Decanter Centrifuge

Gently used Sharples P3400 last used in almond milk production.  40 HP main-drive and 10 HP back-drive motors.   460/3/60.  Sanitary / food-grade design.  4.25″ conveyor pitch spacing.  Hard-surfaced.  Open-hole, fully epicentric plate dams.  Color touch-screen controls complete with Allen Bradley Micrologix PLC and AC-Tech variable frequency drives.

Sharples P-2000 Decanter Centrifuge

Sharples P-2000 Decanter Centrifuge

Reconditioned Sharples P-2000 decanter centrifuge. 14″ x 22″ bowl dimensions. 10 degree beach. 4000 RPM maximum bowl speed. 3180 x G maximum G-force. All stainless steel product contact areas. Available with P-52, 125 or 165 : 1 gear ratios. 20 HP main drive motor. 7.5 HP back drive motor. Control panel with variable frequency drives (VFD), programmable logic controller (PLC) and touch-screen operator interface available.

Sharples P-3000 Decanter Centrifuge

Sharples P-3000 Decanter Centrifuge

Reconditioned Sharples P-3000 decanter centrifuge. 14″ x 30″ bowl dimensions. 10 degree beach. 4000 RPM maximum bowl speed. 3180 x G maximum G-force. All stainless steel product contact areas. Available with P-52, 125 or 165 : 1 gear ratios. 25 or 30 HP main drive motor. 7.5 or 10 HP back drive motor. Control panel with variable frequency drives (VFD), programmable logic controller (PLC) and touch-screen operator interface available.

Sharples P-3400 Decanter Centrifuge

Sharples P-3400 Decanter Centrifuge

Sharples P-3400 decanter centrifuge. Stainless steel product contact parts. 14″ x 48″ bowl dimensions. 10 degree beach. 4000 RPM max. bowl speed. (Same as Sharples PM30000)

Sharples P-5000 Decanter Centrifuge

Sharples P-5000 Decanter Centrifuge

Two (2) Sharples P-5000 decanter centrifuges. P-180 gearboxes reported. Stainless steel rotating assemblies. 25″ x 66″ bowl dimensions. Ideal “big bowl” decanter for oilfield drilling mud. Last used in ethanol DDGS separation.

Sharples P-5400 (PM70000) Decanter Centrifuge

Sharples P-5400 (PM70000) Decanter Centrifuge

Sharples P-5400 (PM70000) decanter centrifuges available in both 2-phase and 3-phase design. 2-phase (liquid/solids) can be converted to a 3-phase (liquid/liquid/solids) design. 25″ x 91″ bowl dimensions. Max. G-force: 3,000 x G. 316/317 stainless steel product contact areas. P-180, 95/1 gearbox. Supplied with brand-new air-cooled lube system. Available as reconditioned with brand-new motors and modern, brand-new PLC/VFD control systems. Typical motor size is 150 HP main-drive and 60 HP…

Sharples P-660 Decanter Centrifuge

Sharples P-660 Decanter Centrifuge

Sharples P660 decanter centrifuge. 6″ x 15″ bowl dimensions. Rated for 3,180 x G-force at 6000 RPM. Stainless steel product contact areas. On stand with motors. 7.5 HP main drive motor.  3 HP back drive motor.  460-480V, 3 phase , 60 Hz.  Contact us for additional details.  F.O.B. Amarillo, Texas.

Sharples P1000 Decanter Centrifuge

Sharples P1000 Decanter Centrifuge

Sharples P-1000 (14″ x 22″ bowl dimensions) decanter centrifuge available for rental. Ideal for pilot testing. 3250 maximum RPM (bowl speed). 2,200 x G-force. 20 HP main-drive motor. 7.5 HP back-drive motor. 460/480 volt, 3-phase input power required. Controls include ABB VFD’s, Allen Bradley PLC, and Maple Leaf touch-screen in an all-weather enclosure. Call for rental details. Machine is also available for purchase.

Sharples P3400 Decanter Centrifuge

Sharples P3400 Decanter Centrifuge

Reconditioned Sharples P3400 decanter centrifuge. Multiple machines available and can be provided in a variety of configurations depending on the application including food-grade / sanitary applications. Please contact us for details.

Sharples PM-35000 Decanter Centrifuge

Sharples PM-35000 Decanter Centrifuge

Sharples PM-35000 (17″ x 50″) decanter centrifuge. All stainless steel product contact areas. Tiled conveyor. 360 degree discharge. P-125 gearbox (125 : 1 ratio). Fiberglass cover (NOTE: stainless steel cover can be fabricated on request).

Sharples-Tomoe P180 Gearboxes 95 : 1 and 47.5 : 1 ratios

Sharples-Tomoe P180 Gearboxes 95 : 1 and 47.5 : 1 ratios

Three (3) Sharples P180 gearboxes available for purchase. One 95/1 and one 47.5/1 ratios. Used on Sharples models P-5000, P-5400, P-75000, P-76000, P-85000 and P-95000. Available for insepction, F.O.B. Amarillo, Texas – USA.

Tomoe – Sharples P-1500 Decanter Centrifuge

Tomoe – Sharples P-1500 Decanter Centrifuge

Tomoe-Sharples P1500 (10″ x 22″ bowl, 10 degree beach). Stainless steel product contact areas. P7.5 gearbox, 95/1 ratio (same gearbox as a Sharples P-660). 7.5 HP main-drive motor. 3 HP back-drive motor. 440 – 480V, 3-phase, 60 cycle.

Westfalia CA-365-010 Decanter Centrifuge

Westfalia CA-365-010 Decanter Centrifuge

Westfalia model CA-365-010 decanter in stainless with paring device pump discharge of centrate, 50 HP motor, built 1983 / 1984. Previously used for separation of  citrus juice and pulp.
